Suprema Thermal Camera can be used with Suprema facial authentication terminals to detect users with a higher body temperature.
Disclaimer: Suprema products cannot be used to diagnose any medical condition. Suprema thermal cameras can only identify individuals with skin temperature higher than a preset figure but should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other illness.

Features

Enhanced
Security and Safety

Suprema Thermal Camera combines with Suprema facial authentication terminals to detect users with elevated skin temperature. The device displays temperature on a GUI and raises alerts when higher than threshold temperature is detected.

Fast and Accurate Temperature Measurement

Suprema thermal camera measures the temperature quickly and accurately by combining its high resolution camera (19,200 pixels) with patented facial authentication algorithm that pinpoints the upper area of the face.
Temperature accuracy ≤±0.5°C(0.9°F)*/±0.3°C (0.5°F)**
  • For ±0.5°C accuracy, use the device:
  • In recommended ambient temperature (10°C to 35°C or 50°F to 95°F)
  • 90 minutes after turning on for self-calibration
  • According to KOLAS(Korea Laboratory Accreditation Scheme) calibration certificate

Easy Deployment

Suprema Thermal Camera easily connects with Suprema facial authentication terminals via USB interface. It comes with a bracket for convenient deployment on new and retrofit installs.

Configuration

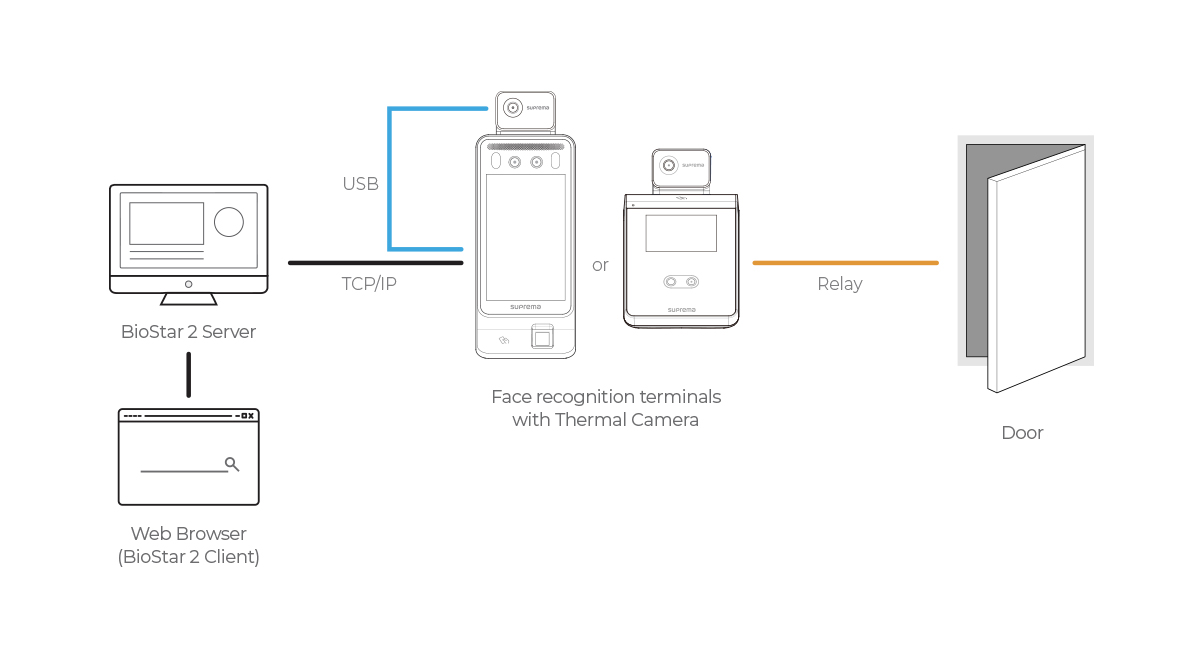

Thermal Camera configuration

Specification

Part Code TCM10-FSF2 TCM10-FS2
Compatible facial authentication terminal FaceStation F2 FaceStation 2
Max. Resolution 120 x 160 (19,200 pixel)
Frame Rate 8 fps
NETD
(Noise Equivalent Temperature Difference)
≤ 50 mK (@25°C, F# = 1.0)
Field of View 37.2° × 50°(H × V)
Temperature Range 1°C-45°C
Temperature Accuracy* ≤±0.5°C (0.9°F)*/±0.3°C (0.5°F)**
Temperature Distance 50 cm-130 cm 40 cm-80 cm
Interface USB
Operating Temperature 0°C to 50°C
Dimensions Camera: 77 mm x 46 mm x 22.2 mm (3.03" x 1.81" x 0.87")
Camera with Bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51" x 6.45" x 0.90")
- TCM10-FSF2-ODB: 109.89 mm x 315.69 mm x 13 mm (4.33" x 12.43" x 0.51")
- TCM10-FSF2-DB: 109.89 mm x 283.39 mm x 13 mm (4.33" x 11.16" x 0.51")
Camera: 77 mm x 46 mm x 22.2 mm (3.03" x 1.81" x 0.87")
Camera with Bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51" x 6.45" x 0.90")
*For ±0.5°C accuracy, use the device:
  • - In recommended ambient temperature (10°C to 35°C or 50°F to 95°F)
  • - 90 minutes after turning on for self-calibration
**According to KOLAS (Korea Laboratory Accreditation Scheme) calibration certificate
