Suprema X-Station 2 is a versatile intelligent terminal that supports different credentials, such as QR codes, Mobile Access, RFID cards and fingerprints, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.

Features

Suprema X-Station 2
Suprema X-Station 2

Multi-technology Terminal
with Various Credential Options

X-Station 2 provides multiple credential options of QR codes, Mobile Access, RFID cards and fingerprints, offering maximum system design flexibility. Mobile Access and QR code authentication let users go cardless and carefree by using smartphones as credentials.

Comprehensive RFID Card Compatibility

X-Station 2 is compatible with most existing RFID card technology.
It supports both LF (125kHz) and HF (13.56MHz) RFID as well as various card types including EM, MIFARE, MIFARE Plus, iCLASS, DESFire and FeliCa.

Enhanced Security
and Data Protection

X-Station 2 guards against malware attacks and data breaches with secure boot process. By supporting OSDP (Open Supervised Device Protocol), the terminal encrypts bi-directional RS-485 communication. Using the built-in camera, X-Station 2 can also capture image logs for added security.

Designed for
easy deployment
and management

X-Station 2 enables convenient installation with less wiring by supporting Power over Ethernet (PoE) as well as various interfaces like Wiegand, RS-485, TTL input and Relay. IP65 rated,
X-Station 2 is dust-tight, water resistant and easy to maintain.

Leading-edge
Fingerprint Recognition

X-Station 2 boasts the "Best-in-class" performance (5,000 template match/ sec) and the highest level of security in terms of Powerful CPU, MINEX-Certified Algorithm, Fake/Live Finger Detection, Fingerprint Template and Packet Data Encryption.
* The fingerprint module is only available in models of XS2-ODPB and XS2-OAPB.

Improved Usability of Intuitive UI on Touchscreen

X-Station 2 allows quick and easy access to features on its 4 ” wide capacitive touchscreen. You can also customize the display for branding purposes.

Expanded Capacity for More Users and
Security Logs

X-Station 2’s large memory can sufficiently meet enterprise needs. Its 16 GB Flash and 1 GB RAM can handle up to 500,000 users,
5 million text logs and 50,000 image logs.
USERS500,000
IMAGE LOGS50,000
TEXT LOGS5,000,000

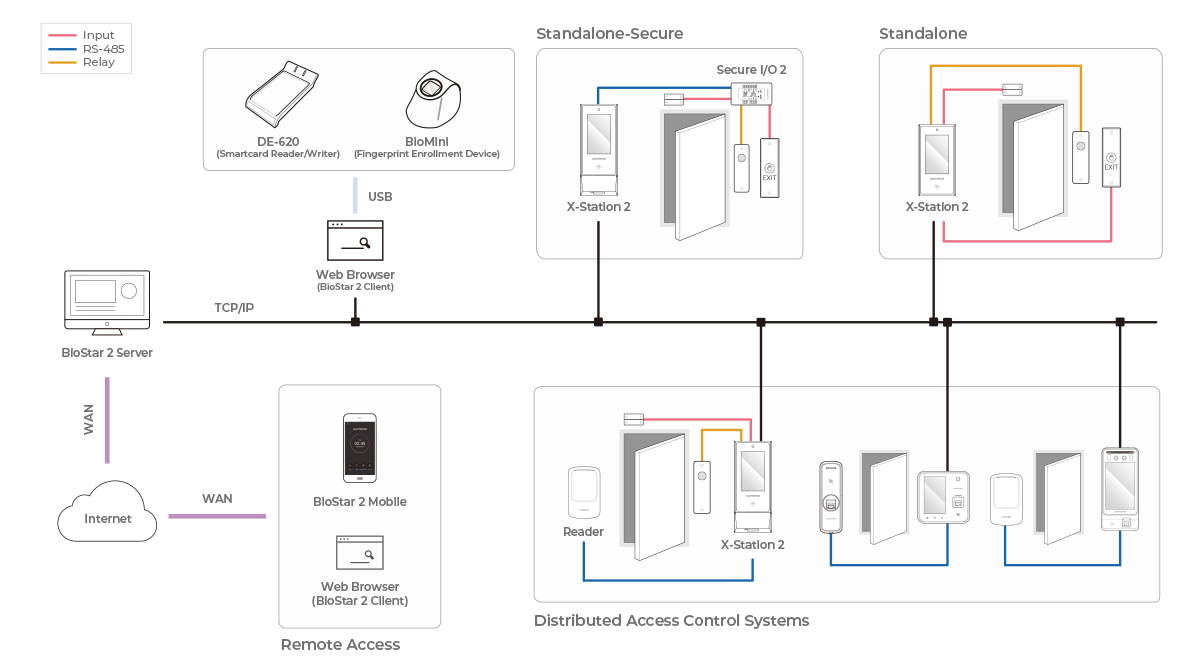

Configuration

X-Station2 Configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • Biometrics

  • RF Option

  • RF read range 2)

  • Mobile Card

  • QR/Barcode 3)

  • Scrambled Keypad (PIN)

Protections

  • IP rating

Fingerprint

  • Image dimension

  • Resolution

  • Template

  • Extractor / Matcher

  • Sensor Certificates

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LCD Resolution

  • Camera

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • PoE

  • Tamper

Electrical

  • Power

XS2-DPB

N/A

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported4)

Supported

IP65

N/A

N/A

N/A

N/A

N/A

N/A

500,0005)

N/A

Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24bit

-20°C ~ 50°C (-4°F–122°F)

-40 C ~ 70 C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 280 g
Bracket: 67 g (Including washer and bolt)

82 x 159 x 25.9 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

XS2-QDPB

N/A

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported

Supported

IP65

N/A

N/A

N/A

N/A

N/A

N/A

500,0005)

N/A

Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24 bit

-20°C ~ 50°C (-4°F–122°F)

-40 C ~ 70 C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 343 g
Bracket: 88 g (Including washer and bolt)

82 x 203 x 33.9 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

XS2-ODPB

Fingerprint

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/ EV2/EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported4)

Supported

IP65

300 x 400 pixels

500 dpi

SUPREMA / ISO19794-2, ANSI-378

MINEX certified and compliant

FBI PIV and FBI Mobile ID FAP20

Supported (SW-based)

500,0005)

Fingerprint: 100,000

Fingerprint: 500,000
Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24 bit

-20°C ~ 50°C (-4°F–122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 375 g
Bracket: 86 g (Including washer and bolt)

82 x 208.5 x 53 (Bottom) / 25.9 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

XS2-APB

N/A

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

MIFARE/DESFire/HID Prox/HID iCLASS/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported4)

Supported

IP65

N/A

N/A

N/A

N/A

N/A

N/A

500,0005)

N/A

Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24 bit

-20°C ~ 50°C (-4°F–122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 280 g
Bracket: 67 g (Including washer and bolt)

82 x 159 x 25.9 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

XS2-QAPB

N/A

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

MIFARE/DESFire/HID Prox/HID iCLASS/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported

Supported

IP65

N/A

N/A

N/A

N/A

N/A

N/A

500,0005)

N/A

Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24 bit

-20 °C ~ 50 °C

-40 °C ~ 70 °C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 343 g
Bracket: 88 g (Including washer and bolt)

82 x 203 x 33.9 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

XS2-OAPB

Fingerprint

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

MIFARE/DESFire/HID Prox/HID iCLASS/EM: 50 mm, Felica: 30 mm

NFC, BLE

Supported4)

Supported

IP65

300 x 400 pixels

500 dpi

SUPREMA / ISO19794-2, ANSI-378

MINEX certified and compliant

FBI PIV and FBI Mobile ID FAP20

Supported (SW-based)

500,0005)

Fingerprint: 100,000

Fingerprint: 500,000
Card: 500,000
PIN: 500,000

5,000,000

50,000

1.5 GHz Quad Core

16 GB Flash + 1 GB RAM

Supported

4" IPS color LCD

480 x 800

CMOS 2M pixels / 1600 x 1200

24 bit

-20°C ~ 50°C (-4°F–122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 375 g
Bracket: 86 g (Including washer and bolt)

82 x 208.5 x 53 (Bottom) / 25.9 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Host or Slave (Selectable)

OSDP V2 compliant

1 ch Input or Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported (IEEE 802.3af compliant)

Supported

Voltage: 12 Vdc, Current: Max. 0.8 A
Voltage: 24 Vdc, Current: Max. 0.5 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.

2)RF read range will vary depending on installation environment.

3)Supports QR/Barcodes composed of up to 32 ASCII code strings.

4)Requires a separate license.

5)The number of users registered without having any credential data.
