X-Station is a formidable device that combines a vast array of components into a slim form factor. X-Station’s 3.5” touchscreen LCD provides the perfect interface to an intuitive UI and its camera, speaker and microphone allow for advanced features such as Face Detection and Videophone capabilities. It is a versatile product that can be used in a variety of applications.

Features

3.5” Touchscreen LCD & GUI
With its efficient QVGA touchscreen LCD, X-Station presents accuracy and precision that set a new standard in access control and high traffic time & attendance systema. The user-friendly and intuitive GUI provides users with a quick and easy access to all the features and functions available within the unit.
Face Detection with Image Logs
A picture is said to be worth more than a thousand words and rather than a simple text-based event log, X-Station can utilize its built-in camera to capture and store real image-based event logs. The image capturing also features Suprema’s Face Detection Technology for added security during verification process. Proximity sensors and IR LEDs ensure that captured images are up to high standards.
Versatile Interface
X-Station comes not only with a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand), 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

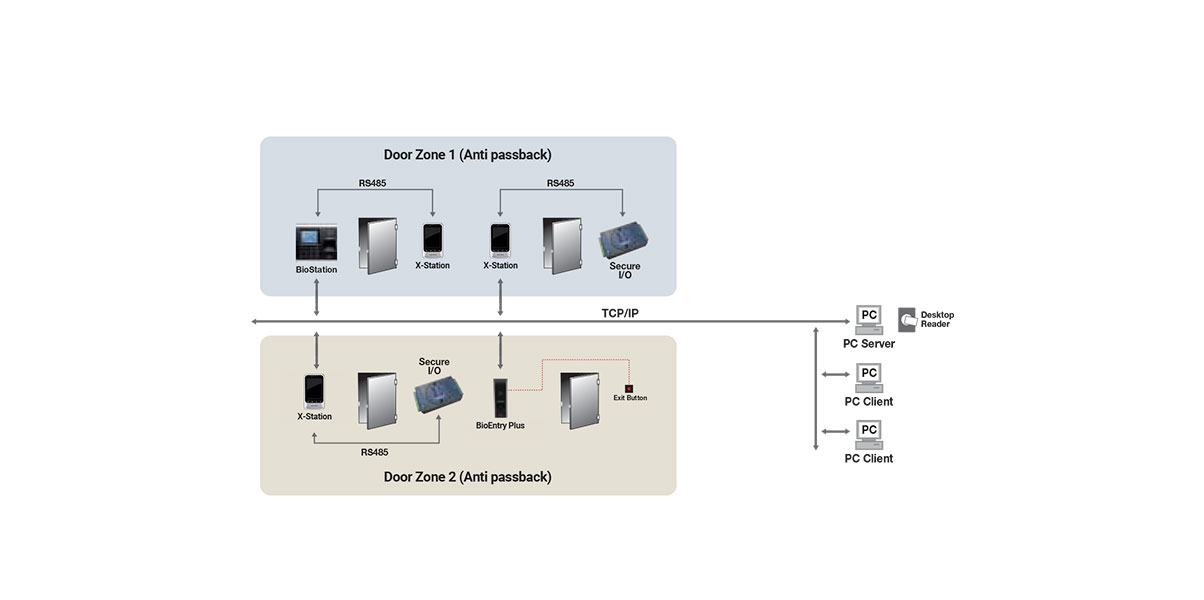

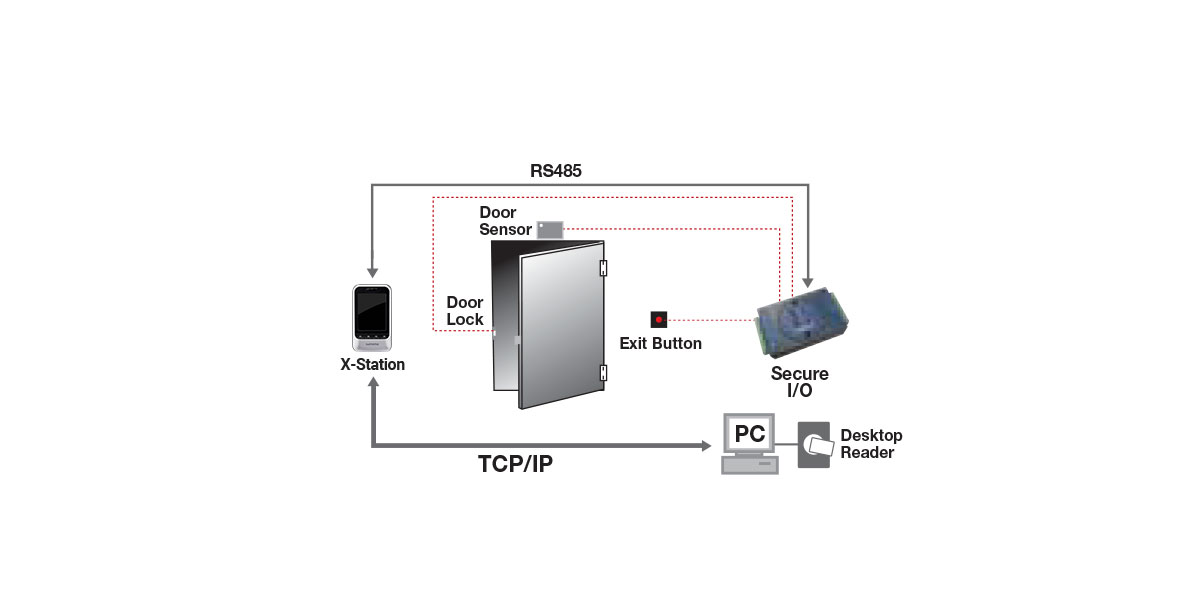

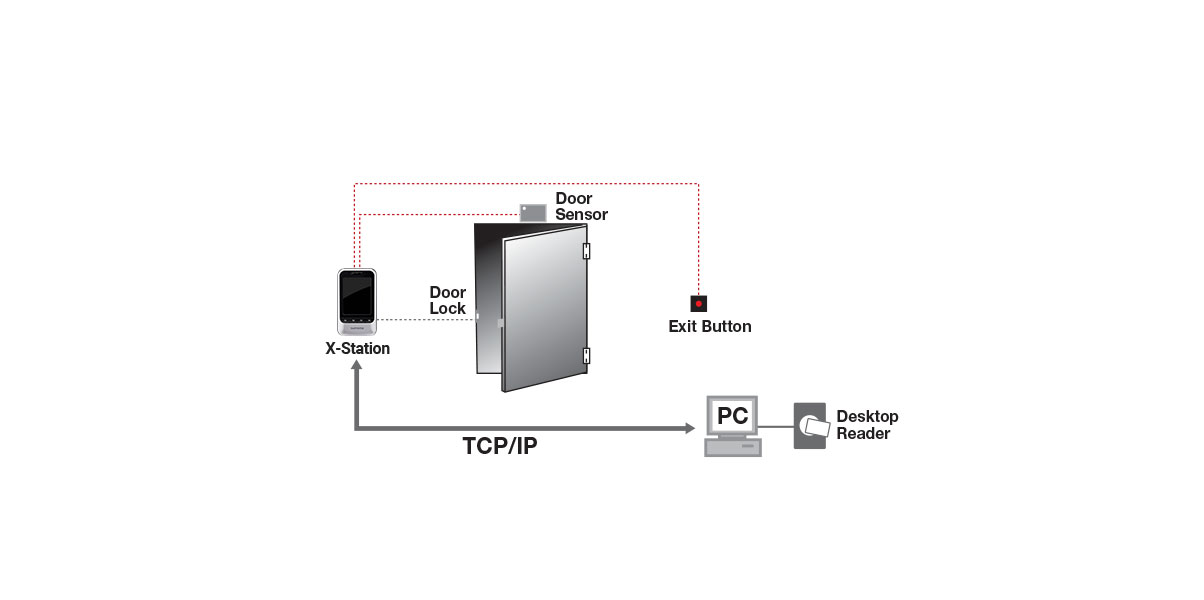

Configuration

Specification

Model Name

RFID

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Capacity (RFID)

  • Users (1:1)

  • Users (1:N)

  • Templates (1:1)

  • Templates (1:N)

  • Text Log

  • Image Log

HW

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

XSE

125kHz EM

Not supported

Not supported

Not supported

200,000

200,000

Not supported

Not supported

1,000,000

5,000

667MHz DSP

128MB RAM + 1GB Flash

3.5" Color Touch

Not supported

16-bit

-20° to 50°C

-40°C ~ 70°C

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 136g, Bracket: 48g (including washers and bolts)

79 x 135 x 21

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Not supported

Supported

12VDC

XSM

13.56MHz MIFARE MIFARE Plus, DESFire/EV1 (CSN)

Not supported

Not supported

Not supported

200,000

200,000

Not supported

Not supported

1,000,000

5,000

667MHz DSP

128MB RAM + 1GB Flash

3.5" Color Touch

Not supported

16-bit

-20° to 50°C

-40°C ~ 70°C

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 136g, Bracket: 48g (including washers and bolts)

79 x 135 x 21

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Not supported

Supported

12VDC
