BioStation L2

BioStation L2
Suprema BioStation L2 is an essential fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s next generation biometric technology and security platform. Designed for all type of time-attendance applications, BioStation L2 provides exceptional value by combining World’s best Suprema fingerprint algorithm, high performance and enhanced security features.

Features

Live Finger Detection
BioStation L2 features the Live Finger Detection 2.0 from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from numerous different materials.
Comprehensive Time & Attendances Features
BioStation L2 converges the benefits of biometrics into time and attendance application. The use of true identity will lead to increased convenience and security to users and administrators. Full capacitive touch keypads along with dedicated programmable TA function keys will offer versatility and friendly user experience through full color LCD display.
Powerful Quad-Core Processor
BioStation L2 embeds the fastest clocked processor to be implemented in our terminals. Abundance of power is utilized for incredible matching speed that can accommodate enterprise size user database. The processor attributes to performance increase in number of aspects from data transfer speed, enhanced image processing, and quick fingerprint authentication.
Intuitive User Interface
BioStation L2 houses 2-inch color LCD with rich colors and visibility that displays intuitive GUI that is easy to understand and self-explanatory. Administrators can easily add, remove, modify user data or access information from the device. Users also can easily access TA functions using the TA function keys and receive feedback right from the screen.

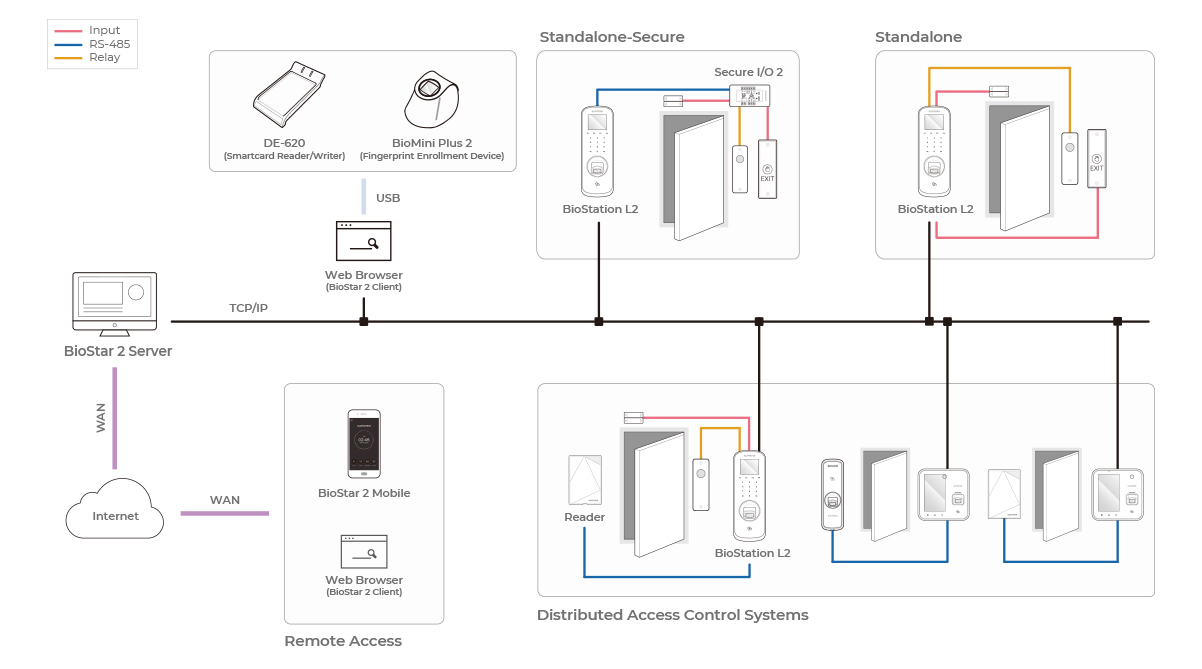

Configuration

BioStation L2 Configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

BSL2-OM

13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa

NFC

Not supported

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported

10

100,000

500,000

1,000,000

Not supported

1.2 GHz Quad Core

2GB Flash + 256 MB RAM

2” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 280g, Bracket: 61g (Including washer and bolt)

71 x 201 x 44 (Bottom) / 34 (Top)

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Input

1 Relay

Not supported

Not supported

Not supported

Not supported

DC 12V

BSL2-OE

125kHz EM

Not supported

Not supported

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported

10

100,000

500,000

1,000,000

Not supported

1.2 GHz Quad Core

2GB Flash + 256 MB RAM

2” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 280g, Bracket: 61g (Including washer and bolt)

71 x 201 x 44 (Bottom) / 34 (Top)

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Input

1 Relay

Not supported

Not supported

Not supported

Not supported

DC 12V

1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation L2.
