Suprema BioStation A2 is the most advanced fingerprint access control and time attendance terminal featuring Suprema’s next generation biometric technology and security platform. BioStation A2 provides class-leading performance through the World’s best matching performance, uncompromised security and accuracy along with top-notch usability.
Features
- World’s Best Performance
- BioStation A2 features a class-leading powerful Quad Core CPU that enhances user experience by offering World’s best matching performance, smooth graphics, and quick response for users. BioStation A2 carries massive 8GB memory to store up to 500,000 users, 5,000,000 text logs as well as 50,000 image logs to accommodate enterprise class sites with room to spare.
- World's Best Accuracy
- BioStation A2 combines the benefit of new OP5 sensor and improved Suprema fingerprint algorithm to provide world best accuracy. Enlarged sensing area with introduction of new fingerprint capture and processing techniques such as adaptive gain control, distortion compensation and noise reduction allows BioStation A2 to reduce capture error rate in various environments.
- Enhanced Security
- BioStation A2 features Suprema’s all new Live Finger Detection technology. Using combination of proprietary optics and algorithm technology, BioStation A2 clearly distinguishes fake fingers made from number of different materials to prevent any fraudulent activity.
- Improved Usability
- BioStation A2 is designed to secure maximum usability for users. 5” IPS LCD touch screen provides wide viewing angles and easy operation that is further extended by special reinforced glass screen that ensures maximum screen visibility. The UI is inspired from Android based material design that is self-explanatory and easy to understand for users.
- Premium Design
- BioStation A2 ensures its premium status with soft hairline pattern on the front face for sleek and solid look. It is wrapped around with rose-gold colored rim finish that serves as a centerpiece while blending in beautifully with any environment.
- Extended Versatility
- BioStation A2 shows off extended versatility with its built-in 2MP wide-angle camera that captures high resolution face captures through face detection for image logs. BioStation A2 also supports videophone, PoE, and built-in WiFi along with extensive RF card options to ensure versatility.

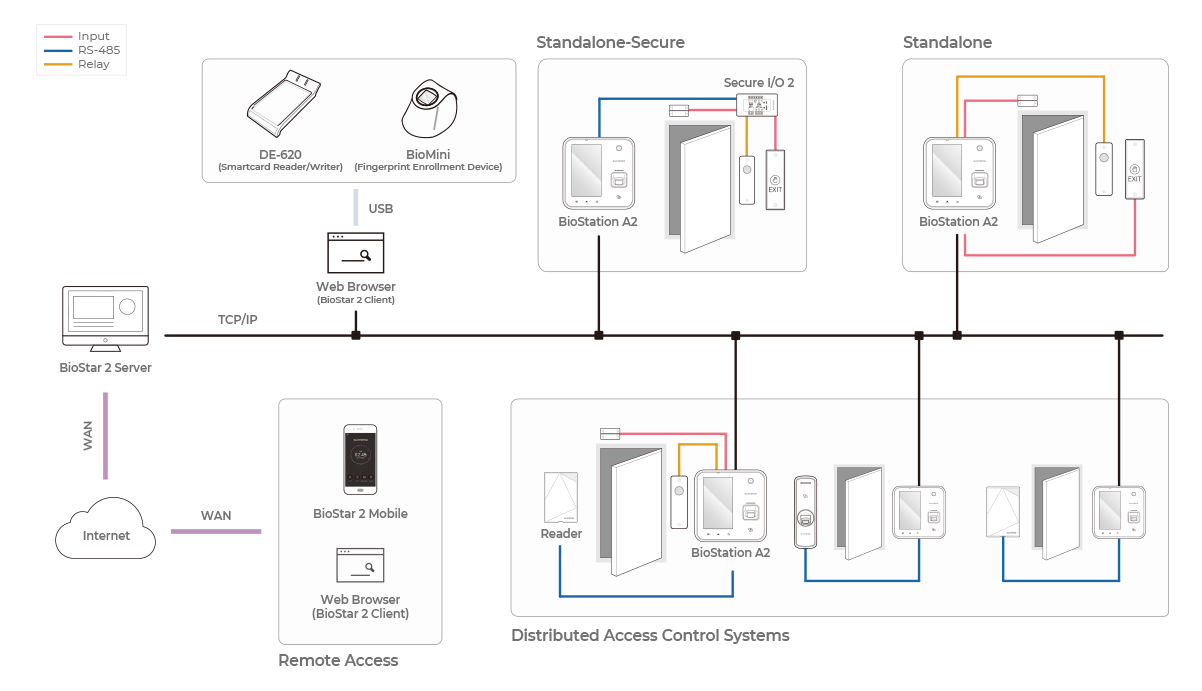

Configuration
Specification
Scroll left/right
Scroll left/right
Model Name
Credential
RF Option
Mobile Card
Protections
Ingress Protection
Vandal Proof
Fingerprint
Template
Extractor / Matcher
Live Fingerprint Detection
Capacity
Max. User
Max. Credential (1:N)
Max. Credential (1:1)
Max. Text Log
Max. Image Log
General
CPU
Memory
Crypto Chip
LCD Type
LED
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Tamper
Interface
Wi-Fi
Ethernet
RS-485
Wiegand
TTL Input
Relay
USB
SD Card
PoE
Intercom
Electrical
Power
BSA2-OMPW
13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa
NFC
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Supported
500,000
Fingerprint: 100,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
5,000,000
50,000
1.0 GHz Quad Core
8GB Flash + 1GB RAM
Supported
5” color TFT LCD
Multiple colors
24 bit/Voice DSP (echo cancellation)
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 89g (Including washer and bolt)
155 x 155 x 40
Supported
Built-in, IEEE 802.11 b/g
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input, 1ch Output
2ch Inputs
2 Relays
USB 2.0 (Host)
microSD card (Supports up to 32GB)
IEEE 802.3af compliant
Supported
DC 12V
BSA2-OEPW
125kHz EM
Not supported
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Supported
500,000
Fingerprint: 100,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
5,000,000
50,000
1.0 GHz Quad Core
8GB Flash + 1GB RAM
Supported
5” color TFT LCD
Multiple colors
24 bit/Voice DSP (echo cancellation)
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 89g (Including washer and bolt)
155 x 155 x 40
Supported
Built-in, IEEE 802.11 b/g
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input, 1ch Output
2ch Inputs
2 Relays
USB 2.0 (Host)
microSD card (Supports up to 32GB)
IEEE 802.3af compliant
Supported
DC 12V
BSA2-OIPW
13.56MHz iCLASS SE/SR/Seos
NFC
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Supported
500,000
Fingerprint: 100,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
5,000,000
50,000
1.0 GHz Quad Core
8GB Flash + 1GB RAM
Supported
5” color TFT LCD
Multiple colors
24 bit/Voice DSP (echo cancellation)
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 89g (Including washer and bolt)
155 x 155 x 40
Supported
Built-in, IEEE 802.11 b/g
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input, 1ch Output
2ch Inputs
2 Relays
USB 2.0 (Host)
microSD card (Supports up to 32GB)
IEEE 802.3af compliant
Supported
DC 12V
BSA2-OHPW
125kHz HID Prox
Not supported
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Supported
500,000
Fingerprint: 100,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
5,000,000
50,000
1.0 GHz Quad Core
8GB Flash + 1GB RAM
Supported
5” color TFT LCD
Multiple colors
24 bit/Voice DSP (echo cancellation)
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 89g (Including washer and bolt)
155 x 155 x 40
Supported
Built-in, IEEE 802.11 b/g
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input, 1ch Output
2ch Inputs
2 Relays
USB 2.0 (Host)
microSD card (Supports up to 32GB)
IEEE 802.3af compliant
Supported
DC 12V
1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation A2.
