BioLite Net is a compact IP fingerprint terminal that has been designed to fit on a mullion mount. BioLite Net’s IP65 rating for protection against dust and water makes it suitable for both indoor & outdoor use and its simple user interface allows for quick and easy access to the device. It is ideal for applications that require basic user interaction in a variety of installation environments.

Features

World-Renowned Suprema Fingerprint Algorithm
BioLite Net is powered by Suprema’s renowned fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the best algorithm in the world. The device delivers fast matching speed and rapid responses while providing an exceptional low error rate. The powerful DSP of the device is capable of handling large amounts of data required for fast and accurate verification while ensuring uninterrupted device operations.
FVC : International competition focused on fingerprint verification software Assessment
MINEX TEST : Minutiae Interoperability Exchange Test by US Government’s NIST
† FVC 2004, 2006, 2010 / NIST MINEX 2008
Best Product, Detektor International Award
BioLite Net is one of the world’s smallest IP fingerprint terminals with Access Control and Time & Attendance features. Due to its long list of features and functions, BioLite Net was awarded the Best Access Control Product Award in the 2009 Detektor Inter-national Awards and was also IFSEC 2009 Security Industry Awards Finalist.
IP65, Dust and Waterproof
BioLite Net packs Suprema’s biometric technology into a simple and slim design exterior. The IP65 rating ensures that the device is exceptionality durable and reliable in indoor or outdoor settings. Sophisticated biometric technology, advanced features, and an user friendly interface make BioLite Net an exceptional value for your budget.
Versatile Interface

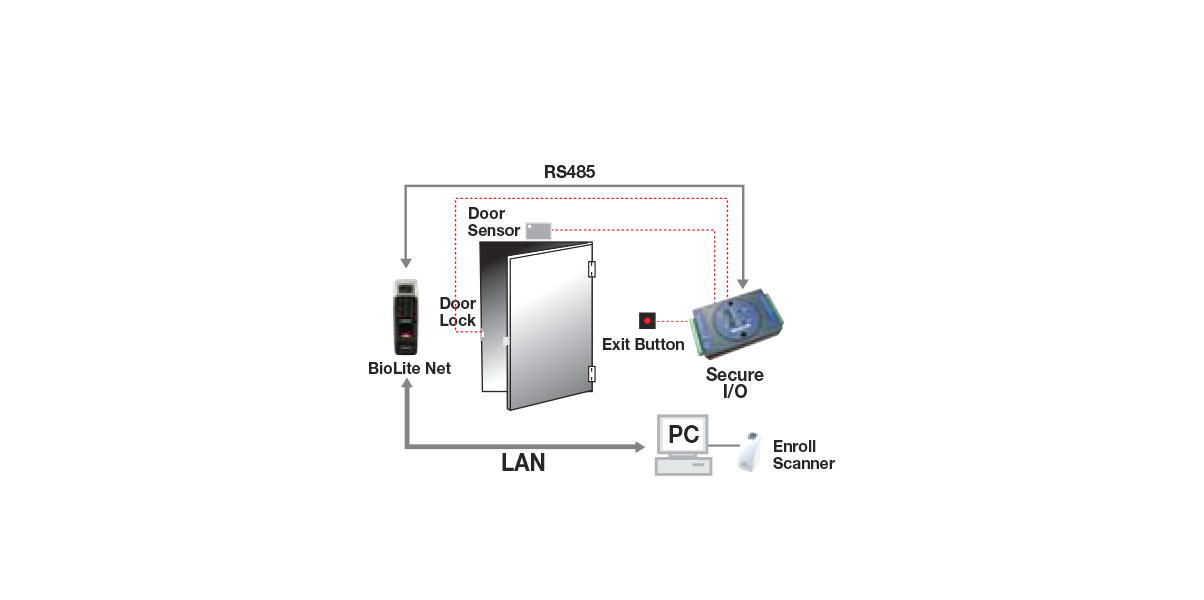

BioLite Net hosts a number of different interfaces for higher flexibility and multiple installation options. It comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) and 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded by using the Secure I/O accessory.

Configuration

Specification

Model Name

RFID

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

Capacity (Fingerprint)

  • Users (1:1)
    * Based on one finger enrollment per user

  • Users (1:N)* Based on one finger enrollment per user

  • Max. Finger per User

  • Text Log

  • Image Log

HW

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

BLR-OC

125 KHz EM

Not supported

IP65

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Not supported

5,000

5,000

10

50,000

Not supported

533MHz DSP

16MB RAM + 8MB Flash

128x64 Graphic LCD (Monochrome)

Multiple colors

Multi-tone Buzzer

-20°C ~ 50°C

-40°C ~ 70°C

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 242g, Bracket: 59g (including washers and bolts)

60 x 185 x 40

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

DC 12V

BLN-OC

13.45Mhz MIFARE MIFARE Plus, DESFire/EV1(CSN)

Not supported

IP65

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Not supported

5,000

5,000

10

50,000

Not supported

533MHz DSP

16MB RAM + 8MB Flash

"128x64 Graphic LCD (Monochrome)"

Multiple colors

Multi-tone Buzzer

-20°C ~ 50°C

-40°C ~ 70°C

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 242g, Bracket: 59g (including washers and bolts)

60 x 185 x 40

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

DC 12V
