XPass D2

Outdoor Compact RFID Reader

XPass D2
Outdoor Compact RFID Reader
XPass D2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass D2 can be installed in various environments. XPass D2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.

Features

Multi-Smartcard Reader with Dual Frequency

Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credentials, the XPass D2 supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, NFC, and BLE.

Communicates with Smartphones

With Suprema Mobile Access, as a credential, your smartphone is a key to access.

BLE (Bluetooth Low Energy)

Communicates via BLE in Android
Protects data communications using the AES encryption algorithm

NFC (Near Field Communication)

Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models.
Protects data communications using AES encryption algorithm

BLE (Bluetooth Low Energy)

Communicates via BLE in iOS
Protecting data communications using the AES encryption algorithm

Standardized Communications

Open Supervised Device Protocol (OSDP)

Combined with Suprema’s intelligent biometric controller, the CoreStation, XPass D2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
Suprema OSDP

Xpass D2 has been verified by SIA (Security Industry Association) to be OSDP compliant. Open Supervised Device Protocol (OSDP) enables encrypted bidirectional communication between readers and controllers.

Learn more about OSDP

Mullion-mount Design

With its 48mm width, the XPass D2 fits perfectly in narrow spaces and door frames.

Gangbox-type Design

XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.

IP67, Dust & Water Proof

With IP67, XPass D2 is tightly sealed against invasive moisture, dust and liquid. This protection is achieved by Suprema's protective engineering which ensures that XPass D2 remains reliable and functioning in all type of environments.

IK08 Vandal-proof Structure

The XPass D2 comes with a strong, vandal-resistant package. Combining reinforced resin with Suprema’s sophisticated engineering, the XPass D2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass D2 is the perfect solution for outdoor installations.

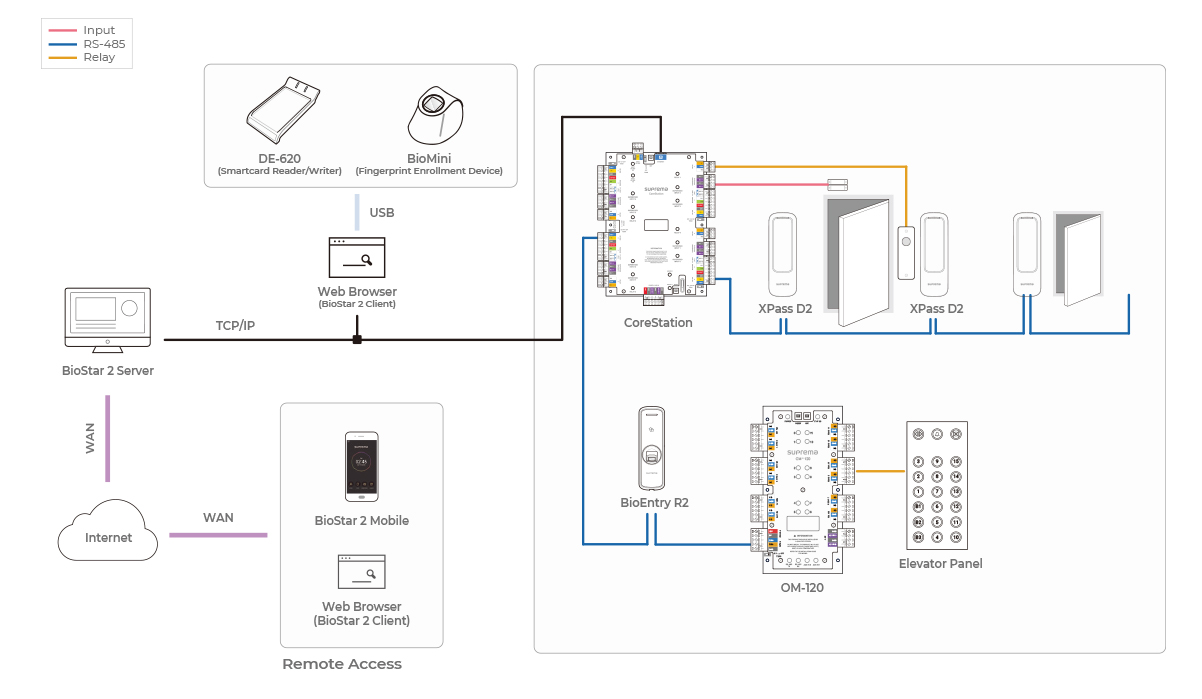

Configuration

Specification

Scroll left/right

Scroll left/right

Model Name

RFID

  • RF Option

  • Mobile Card 2)

Protections

  • Ingress Protection

  • Vandal Proof

HW

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

  • Certificates

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

XPD2-MDB

125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa

NFC, BLE

IP65, IP67

IK08

80 MHz

512 KB Flash + 160 KB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 117g, Bracket: 30g (Including washer and bolt)

48 x 144.7 x 27

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG, OSDP verified

Not supported

Not supported

1ch Slave

1ch

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

DC 12 V

XPD2-GDB

125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa

NFC, BLE

IP65, IP67

IK08

80 MHz

512 KB Flash + 160 KB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 140g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG, OSDP verified

Not supported

Not supported

1ch Slave

1ch

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

DC 12 V

XPD2-GKDB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa

NFC, BLE

IP65, IP67

IK08

80 MHz

512 KB Flash + 160 KB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 145g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG, OSDP verified

Not supported

Not supported

1ch Slave

1ch

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

DC 12 V

1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with XPass D2.

2)Suprema Mobile Access is supported on XPass D2 - V02A H/W versions only.

Accessory

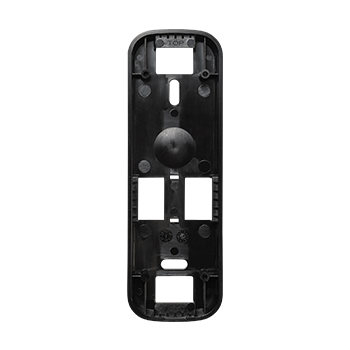

  • Extended Bracket (Mullion-type)

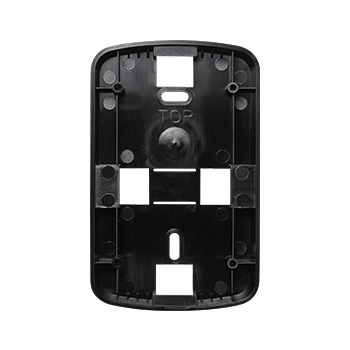

  • Extended Bracket (Gangbox-type)
