XPass S2

XPass S2
XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.

Features

Multi-Smartcard Reader

The XPass S2 has an innovative multi-smartcard support. This new feature gives XPass S2 the ability to read multiple formats from Mifare, DesFire, ISO14443A, ISO15693, to Felica.

Ultra Slim Body with Minimalistic Design

XPass S2’s profile is only 11.4mm thick, creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, XPass S2 allows for quick and easy installations.

IP65-rated Dust & Waterproof structure

With IP65, XPass S2 is tightly sealed against invasive moisture, dust and liquid. This protection is achieved by Suprema's protective engineering which ensures that XPass S2 remains reliable and functioning in all types of environments.

Adaptive Temperature Control

Adaptive temperature control will allow XPass S2 to operate in extreme cold temperatures as well as extreme hot environments. (Operational temperature -35°C to 65°C)

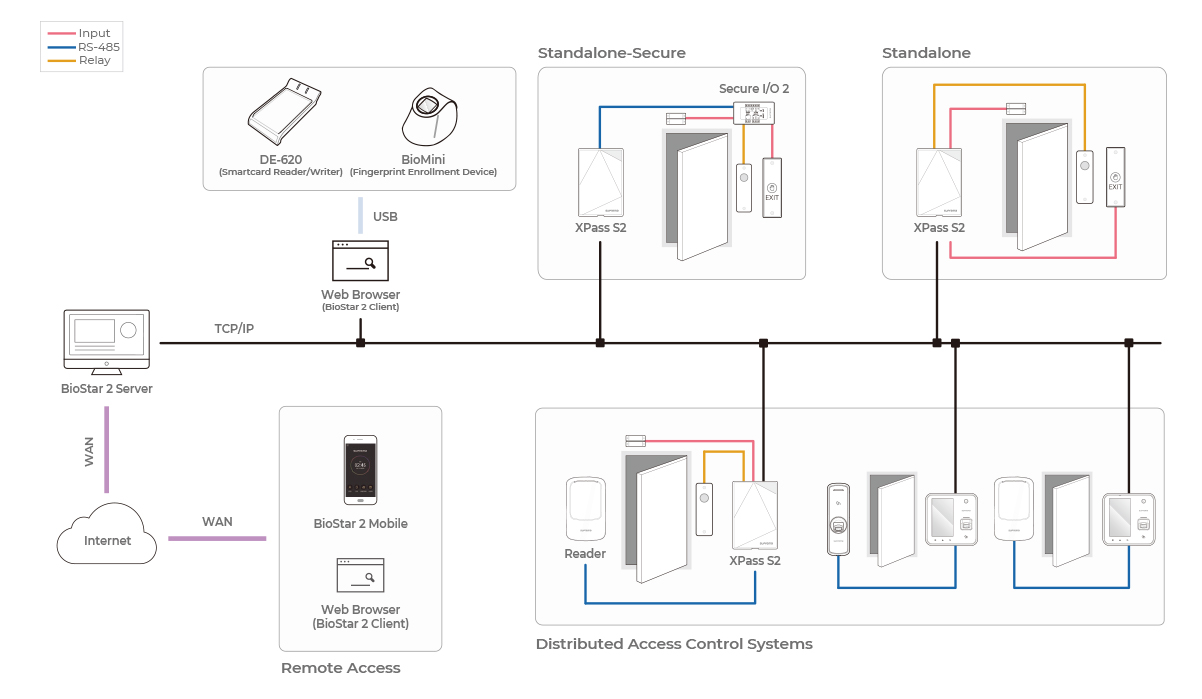

Configuration

Xpass s2 configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Capacity (RFID)

  • Users (1:1)

  • Users (1:N)

  • Templates (1:1)

  • Templates (1:N)

  • Text Log

  • Image Log

General

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

XPS2M

13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV21) (CSN), FeliCa

Not supported

IP65

Not supported

50,000

50,000

Not supported

Not supported

100,000

Not supported

533MHz DSP

16MB RAM + 16MB Flash

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 107g, Bracket: 43g (including washers and bolts)

80 x 120 x 11.4

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

12VDC

1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with XPass S2.

Download

  • 19

    2018.11

    Firmware
    Xpass S2 Firmware v2.4.4
    529.15 KB
  • 19

    2018.11

    Manual
    Xpass S2 Drilling Template EN
    404.87 KB
  • 19

    2018.11

    Manual
    Xpass S2 IG V2.21 EN
    4.36 MB
  • 19

    2018.11

    Brochures
    Xpass S2 Brochure EN
    780.97 KB
