BioLite N2

Outdoor IP Fingerprint Terminal

BioLite N2
Outdoor IP Fingerprint Terminal
Suprema BioLite N2 is a Suprema’s 2nd generation outdoor fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema's latest biometric technology and security platform. BioLite N2 provides class-leading performance and security by featuring Suprema's latest fingerprint algorithm coupled with world's best fingerprint sensor. Packed in a rugged IP67 housing, BioLite N2 added flexibility in system design with multi-class RFID reading technology.

Features

Faster Fingerprint Matching Speed
BioLite N2 features a class-leading 1.2GHz CPU that enhances user experience by offering precise control of locking devices, and quick response for users.
IP67, Dust & Water Proof
BioLite N2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioLite N2 is the ideal choice for outdoor applications.
Communicates with Smartphones
With Suprema Mobile Access, as a credential, your smartphone is a key to access.
BLE (Bluetooth Low Energy)
Communicates via BLE in Android
Protecting data communications using the AES encryption algorithm
NFC (Near Field Communication)
Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models.
Protecting data communications using the AES encryption algorithm
BLE (Bluetooth Low Energy)
Communicates via BLE in iOS
Protecting data communications using the AES encryption algorithm
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID technology, BioLite N2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID standards that HID multi CLASS readers support. On top of fingerprint credential, BioLite N2 supports most types of RFID card standards with a single device including 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC and 2.4GHz BLE
Versatile Interfaces
BioLite N2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

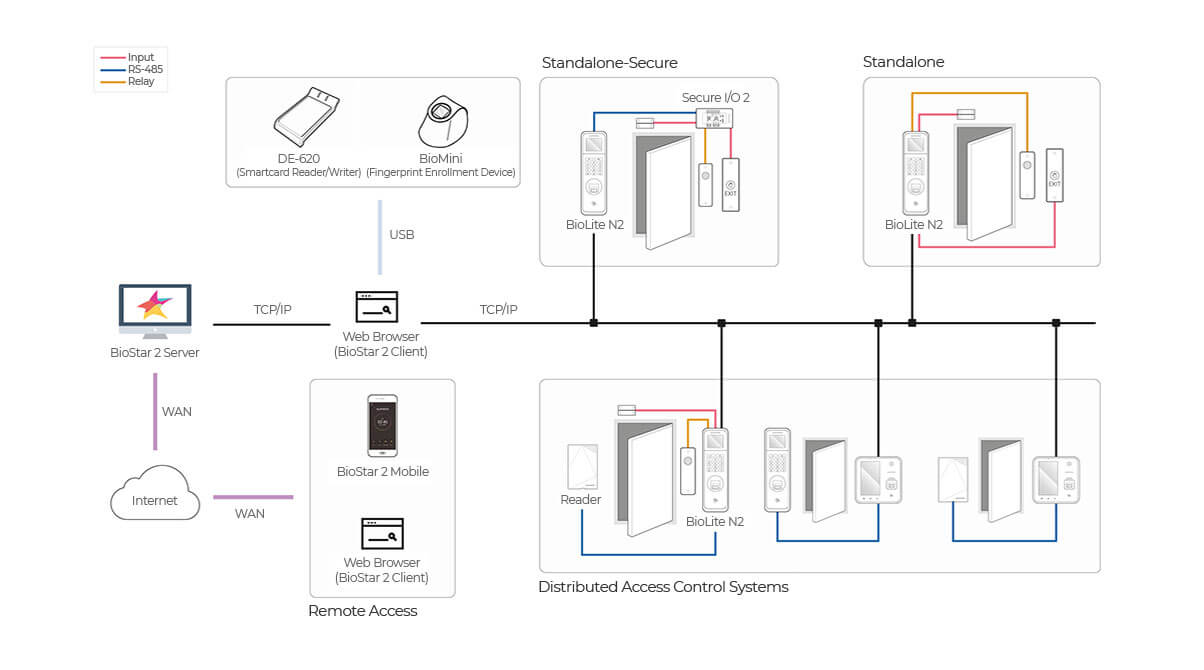

Configuration

biolite n2 configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • RF read range 2)

  • Mobile Card

Protections

  • IP rating

  • IK rating

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • Display

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Tamper

Electrical

  • Power

BLN2-ODB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, NFC & 2.4GHz BLE

MIFARE/DESFire: 50 mm, EM/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

BLN2-OAB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE

MIFARE/DESFire/HID iCLASS: 50 mm, EM/HID Prox/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

BLN2-PAB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE

MIFARE/DESFire/HID iCLASS: 50 mm, EM/HID Prox/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-10°C ~ 50°C (14°F ~ 122°F)

-20°C ~ 60°C (-4°F ~ 140°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioLite N2.

2)RF read range will vary depending on installation environment.
