XPass 2

Outdoor Compact RFID Device

XPass 2
Outdoor Compact RFID Device
Features Configuration Specification Accessory Peripherals Download Video
WHERE TO BUY share
XPass 2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass 2 can be installed in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.

Features

Multi-RFID card reader with Dual Frequency

Featuring dual-frequency RFID card technology, XPass 2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credentials, the XPass 2 supports most types of RFID card standards with a single device including 125 kHz EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3 and Felica.

Communicates with Smartphones

With Suprema Mobile Access, your smartphone is transformed into an access key.

BLE (Bluetooth Low Energy)

Communicates via BLE in Android
Protects data communications using the AES encryption algorithm

NFC (Near Field Communication)

Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended that you check the smartphone specification, but this feature is widely supported on the latest models.
Protects data communications using AES encryption algorithm

BLE (Bluetooth Low Energy)

Communicates via BLE in iOS
Protecting data communications using the AES encryption algorithm

Mullion-mount Design

With its 48mm width, the XPass 2 fits perfectly in narrow spaces and door frames.

Gangbox-type Design

XPass 2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.

The keypad also has a homing bump on the number five key for ease of use by the visually impaired.

IP67, Dust & Water Proof

With IP67, XPass 2 is tightly sealed against invasive moisture, dust and liquid. This protection is achieved by Suprema's protective engineering which ensures that XPass 2 remains reliable and functioning in all type of environments. No matter how harsh the environment,it is the ideal choice for outdoor applications.

IK08 Vandal-proof Structure

The XPass 2 comes with a strong, vandal-resistant package. Combining reinforced resin with Suprema’s sophisticated engineering, the XPass 2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass 2 is the perfect solution for outdoor installations.

Configuration

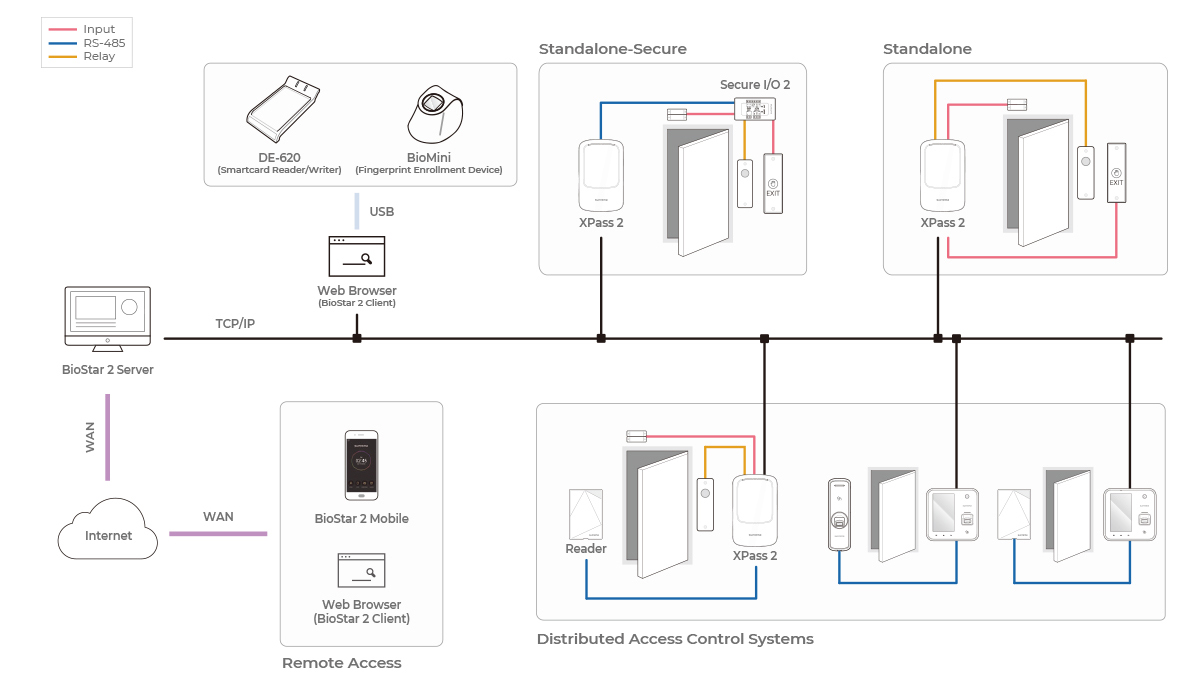

Xpass2 Configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • RF read range 2)

  • Mobile Card

Protections

  • IP rating

  • IK rating

Capacity (RFID)

  • Users (1:1)

  • Users (1:N)

  • Text Log

  • PIN

General

  • CPU

  • Memory

  • Crypto Chip

  • Display

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Tamper

Electrical

  • Power

XP2-MDPB

125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/ EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Not supported

1 GHz

4 GB Flash + 64 MB RAM

Supported

Not supported

Multi-color

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 144g, Bracket: 30g (Including washer and bolt)

48 x 144.7 x 27 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, ETL Listed to UL 294

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1ch Master or Slave (Selectable)

OSDP V2 Compliant

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

Supported

Voltage: 12 Vdc, Current: Max. 0.5 A
Voltage: 24 Vdc, Current: Max. 0.3 A

XP2-GDPB

125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/ EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Not supported

1 GHz

4 GB Flash + 64 MB RAM

Supported

Not supported

Multi-color

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 220g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, ETL Listed to UL 294

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1ch Master or Slave (Selectable)

OSDP V2 Compliant

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

Supported

Voltage: 12 Vdc, Current: Max. 0.5 A
Voltage: 24 Vdc, Current: Max. 0.3 A

XP2-GKDPB

125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/ EV31), FeliCa

MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Supported (Keypad 3x4)

1 GHz

4 GB Flash + 64 MB RAM

Supported

Not supported

Multi-color

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 235g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, TELEC, RoHS, REACH, WEEE, ETL Listed to UL 294

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1ch Master or Slave (Selectable)

OSDP V2 Compliant

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

Supported

Voltage: 12 Vdc, Current: Max. 0.5 A
Voltage: 24 Vdc, Current: Max. 0.3 A

XP2-MAPB※

125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

MIFARE/DESFire/iCLASS/EM: 50 mm, HID Prox/FeliCa: 30 mm

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Not supported

1 GHz

4 GB Flash + 64 MB RAM

Supported

Not supported

Multi-color

Multi-tone Buzzer

-35°C ~ 65°C (-31°F ~ 149°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 144g, Bracket: 30g (Including washer and bolt)

48 x 144.7 x 27 (mm)

CE, UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1ch Master or Slave (Selectable)

OSDP V2 Compliant

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

Supported

Voltage: 12 Vdc, Current: Max. 0.5 A
Voltage: 24 Vdc, Current: Max. 0.3 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with XPass 2.

2)RF read range will vary depending on installation environment.

※ The XP2-MAPB Model is not available in US, Canada, Australia and New Zealand.

Accessory

  • Extended Bracket (Mullion-type)

  • Extended Bracket (Gangbox-type)
