BioEntry R2

Compact Fingerprint Reader

BioEntry R2
Compact Fingerprint Reader
Suprema BioEntry R2 is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture, minutiae extraction as well as dual-frequency multi RF card reading capability. Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

Features

Standardized Communications
Open Supervised Device Protocol (OSDP)
Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
Learn more about OSDP
Communicates with SmartPhones
Supports NFC – allows you to use your Android smartphone as a key to access. (Not available for BLE support)
nfc
NFC (Near Field Communication)
Communicates via NFC’s HCE in Android
Protecting data communications using the AES encryption algorithm
Mullion-type Design
With its 50mm width, BioEtnry R2 perfectly fits in its narrow spaces and door frames.
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID card technology, BioEntry R2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, BioEntry R2 supports most types of RFID card standards with a single device including MIFARE, DESFire, FeliCa, EM and NFC.
bioentry r2 module

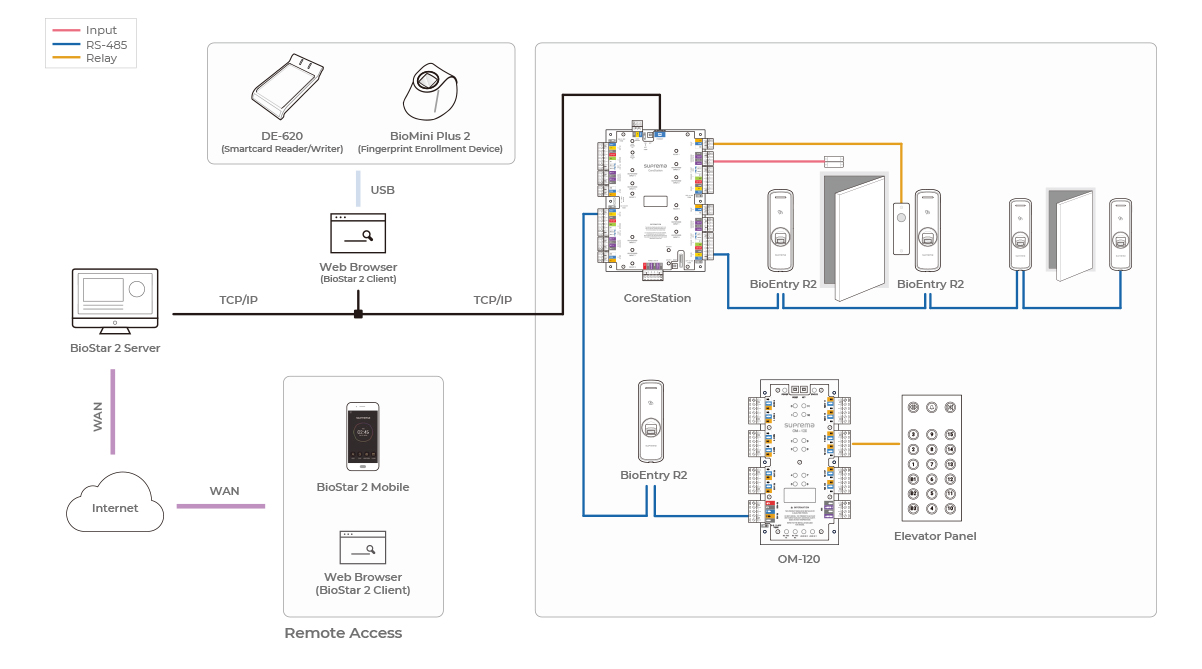

Configuration

bioentry r2 configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • RF read range 2)

Protections

  • IP rating

  • IK rating

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

General

  • CPU

  • Memory

  • Crypto Chip

  • Display

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Tamper

Electrical

  • Power

BER2-OD

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa

MIFARE/DESFire: 50 mm, EM/Felica: 30 mm

Not supported

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Not supported

1.0 GHz

32MB Flash + 32MB RAM

Supported

Not supported

Multi-color

Multi-tone Buzzer

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 158g, Bracket: 39g (Including washer and bolt)

50.1 x 164 x 38 (mm)

CE, UKCA, KC, FCC, RoHS, REACH, WEEE

Not supported

Not supported

1ch Slave

OSDP V2 Compliant

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.2 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry R2.

2)RF read range will vary depending on installation environment.

Accessory

  • Power Adapter

Peripheral Device

Download

  • Brochures
    BioEntry R2 Brochure EN
    Aug 28, 2020
    1.85 MB
