SFM5000 Series
SFM5000 Series is a high performance OEM fingerprint module featuring an array of cutting-edge technologies.
Along with its optical sensor and Suprema’s Conformance Decision Engine (CDE) technology that captures an optimal fingerprint image for all finger types, SFM5000 series offers you flexibility to create a new, powerful and innovative system design at an affordable cost.
SFM5000 Series guarantees "Best-in-class" performance (5,000 template match/ sec) and the highest level of security in terms of MINEX-Certified Algorithm, Fake/Live Finger Detection (SFM5060 only), Fingerprint Template and Packet Data Encryption.

Features

Suprema’s Live Finger Dectection(LFD) technology compares dynamic and static images of fake and live fingers. The advanced analysis algorithm detects abnormalities in change of fingerprint patterns. Static features, revealing liveliness or unnaturalness of fingers, are detected and distinguish from live fingers. This LFD technology provides a safer solution to protect your fingerprint system from attempts by fake fingerprints.

Suprema LFD Technology

Pattern Analysis for Dynamic Change
Liveness Feature Analysis
Unnaturalness Feature Analysis
  • 533MHz DSP
  • 1:1 verification in 600ms
  • Fast-Boot
  • 8 configurable Digital I/O Ports
  • 1:1,000 Identification in 760ms
  • Suprema, ISO 19794-2 and ANSI 378 Template Options
  • 256-bit AES Fingerprint Data Encryption
  • 4MB Flash Memory Option

Available Models

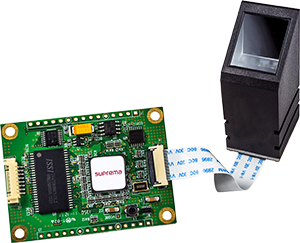

SFM5020-OP

  • Optical Fingerprint Sensor
  • Robust optical fingerprint sensor
  • Solid and scratch-free sensor surface
  • Reliable high quality fingerprint image for wet & dry fingers
  • Sensor surface optimized to capture the ideal fingerprint image

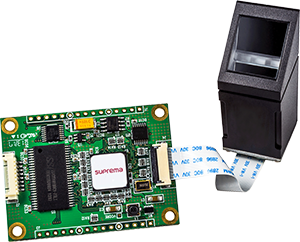

SFM5030-OC

  • Waterproof Optical Fingerprint Sensor
  • Robust optical fingerprint sensor & OEM fingerprint module
  • IP65 rated waterproof front surface
  • Solid and scratch-free sensor surface
  • Reliable High quality fingerprint image capturing for wet & dry fingers

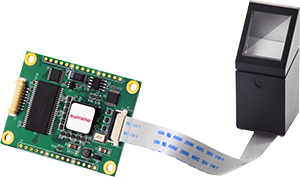

SFM5060-OH

  • Optical Fingerprint Sensor with LFD
  • 500 dpi resolution
  • Hybrid finger detection technology
  • PIV/FIPS 201 certification
  • Waterproof front side

Specification

Sensor Option Optical
CPU 533MHz DSP
Flash Memory 1 MB (4MB Option)
EER < 0.1%
Enrollment Time
(Sensor Dependent)
< 600ms OP5/OC4/OH
1:1 Verification Time
(Sensor Dependent)
< 600ms OP5/OC4/OH
1:1000 ID Time*
(Sensor Dependent)
< 760ms OP5/OC4/OH
Template Options Suprema, ISO19794-2, ANSI-378
Template Size
(Default: 384 Bytes)
Default: 384 Bytes
256 - 384 Bytes (Configurable)
Template Capacity 1,900 @ 1MB Flash
9,500 @ 4MB Flash
Host Comm. Asynchronous serial: CMOS level (3.3V) (up to 460800 bps)
External I/O 8x Digital I/O
Fingerprint Data
Encryption
256-bit AES
Supply Voltage 3.3 VDC Regulated
Operating Temp (°C) -15 to 50 °C
PIV-certified Yes (SFM5060-OH)
Live Finger Detection Yes (SFM5060-OH)
Board Size
(L x W x H) (mm)
55 x 40 x 8
Model SFM5020-OP5 SFM5030-OC4 SFM5060-OH
Sensor Type Optical Optical Optical
Sensor Options OP5 OC4 OH
Resolution (dpi) 500 500 500
Sensing Area (mm) 16.0 x 19.0 16.0 x 18.0 15.0 x 18.8.0
Image Size (px) 272 x 320 288 x 288 260 x 340
Finger Rotation +/- 90' +/- 90' +/- 90'
Sensor Dimension
(L x W x H) (mm)
20.5 x 25 x 52 21 x 23 x 54 21 x 23 x 54

*Average genuine identification time including feature extraction

Accessory

  • Sensor (OP)

  • Bracket (OP)

  • Housing (OP, T1)

Applications

  • Access Control

  • Time and Attendance

  • Door Lock

  • Safe

  • Mobile POS

  • Vending Machine

  • IoT
